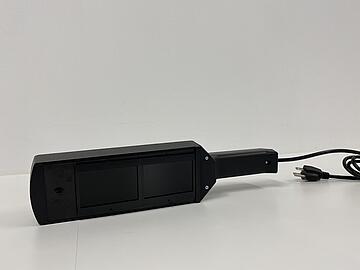

UVP Handheld UV Lamps
-
Lamps are lightweight for easy handling
-
Durable plastic housing
-
Six watt tubes
-
Models available with shortwave (254 nm), midrange (302 nm), longwave (365 nm) UV or a combination shortwave/longwave (254/365 nm) version
-
Combination shortwave/longwave version comes with a snap-on wavelength selector for switching between wavelengths
Product Details
Lamps are lightweight for easy handling
Handheld UV Lamps (6 watts) are uniquely designed with an ergonomically designed handle. Select from longwave, midrange, shortwave or combination longwave and shortwave in the same lamp.
Applications include:
Photochemistry/Phosphorescence
Inspection
Laboratory
General Chemical Laboratory
*Product performance and effectiveness will depend on the user.*
Technical Data
| Specifications | |||||
|---|---|---|---|---|---|
| Housing | Plastic | ||||
| UV | Select from models with 254 nm, 302 nm, 365 nm UV or combination 254/365 nm | ||||
| Watts | Six | ||||
| Lamp Dimensions | 14.9L x 3.2W x 2.5H in. (378 x 81 x 64 mm) | ||||
| Lamp Stand Dimensions | 10.74H x 13L x 3W in. (273 x 330 x 76 mm) | ||||
Order Information
| Part Numbers | |||||
|---|---|---|---|---|---|
| 115 V | 230 V | Model | Description 6 Watt Lamps | Filter | |
| 95-0004-09 | 95-0004-10 | UVG-54 | Handheld UV Lamp, 254 nm | 98-0004-03 | |
| 95-0005-05 | 95-0005-06 | UVGL-55 | Handheld UV Lamp, 254/365 nm | 98-0005-03 | |
| 95-0007-05 | 95-0007-06 | UVGL-58 | Handheld UV Lamp, 254/365 nm | 98-0004-03 | |
| 95-0006-02 | 95-0006-03 | UVL-56 | Handheld UV Lamp, 365 nm | 98-0006-03 | |
| 95-0104-01 | 95-0104-02 | UVM-57 | Handheld UV Lamp, 302 nm | 98-0004-03 | |
| Replacement Parts / Accessories | |||||
| 98-0016-03 | J-129 | Lamp Stand | |||
| 34-0013-01 | Replacement Tube | 6 Watt, 254 nm | |||
| 34-0015-01 | Replacement Tube | 6 Watt, 254/365 nm (split tube) | |||
| 34-0034-01 | Replacement Tube | 6 Watt, 365 nm | |||
| 34-0044-01 | Replacement Tube | 6 Watt, 302 nm | |||

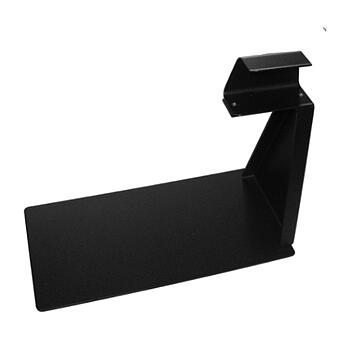

Use these lamps with the J-129 Lamp Stand for hands free operation
Use these lamps the C-10 Cabinet for fluorescing and viewing materials in a darkened environment
UV blocking eyewear
