UVP High Intensity UV Lamps

  • B-100 "P" series lamps come with heat-resistant plastic (Cool-Touch) housing allowing users to handle the lamp head regardless of how long the lamp has been operating

  • Non "P" models are built with an aluminum lamp head

  • A 100 watt spot bulb is standard with all models (except the B-100SP); the bulb is rated at 5000 hours

  • Self-ballasted bulb included with the B-100SP has an average life of 450 to 2000 hours depending on use patterns

  • The lamp head connects to the transformer base for hands free use (all models except B-100SP) allowing the lamp head to rotate a full 360°; remove the lamp from the base for additional mobility

Product Details

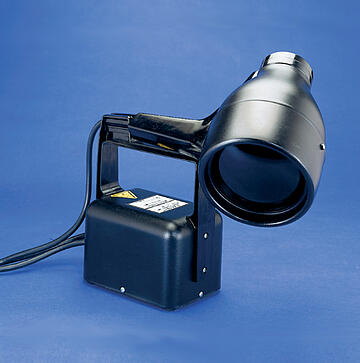

The UVP Blak-Ray B-100 Series high powered UV lamps offer brilliant irradiance for optimum fluorescence. The B-100AP lamp is placed in the transformer base for hands-free operation.

B-100AP and B-100AP/R
B-100AP models feature 100 watt longwave UV, Cool-Touch housing and ballast base. At 18 in. (457 mm), the lamp produces a highly intense center of UV irradiance about 5 in. (127 mm) in diameter. Lamp head can rotate 360 degrees when attached to the base for hands-free operation or lamp can be removed from the base. 8 ft primary and secondary cords. For added mobility, select the B-100AP/R which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100A and A-100AR
The longwave B-100A is manufactured with a scratch-resistant aluminum housing which connects to ballast base with an 8 foot cord; 8 foot secondary cord is included. The 100 watt longwave UV bulb is excellent for inspection applications. For increased mobility, select the B-100AR which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100SP
This 90 watt longwave, self-ballasted lamp is a highly portable, high intensity lamp for automotive leak detection applications. The ballast is built directly into the bulb. The B-100SP features the Cool-Touch housing and an 8 ft. (2.44m) cord.

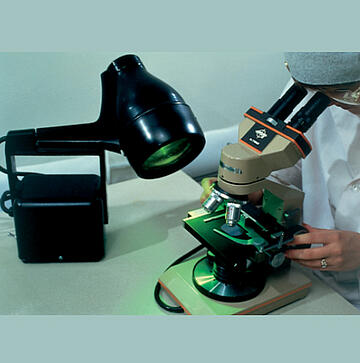

B-100Y and B-100YP
These models feature a yellow filter which blocks wavelengths shorter than 500 nm and produces three strong mercury lines at 543, 574 and 576 nm. The high contrast light is produced for fine surface particle detection. Particles down to 10 microns are routinely visible with this lamp. The B-100Y is built with aluminum housing and the B-100YP with a plastic housing. These lamps are excellent for semiconductor wafer inspection as most photoresist absorption occurs below 450 nm.

Applications include:

  • Fluorescence Inspections
  • Non Destructive Testing
  • Leak Detection
  • Readmission

Technical Data

Specifications
UV Source

365 nm longwave UV

Watts

100 watts (all models except B-100SP which is 90 watts)

B-100A Dimensions

Lamp Head 8.5D x 5.5Dia. in. (216 x 140 mm)
Weight: 11.72 lb (5.33 kg)
Cord length: 8 ft. (2.44 m)

B-100AR Dimensions

Lamp Head 8.5D x 5.5Dia. in. (216 x 140 mm)
Weight: 11.72 lb (5.33 kg)
Cord length: 20 ft. primary and secondary

B-100AP Dimensions

Lamp Head 9.75D x 6Dia in. (248 x 152 mm)
Weight: 12.5 lb. (5.6 kg)
Cord length: 8 ft. (2.44 m)

B-100AP/R Dimensions

Lamp Head 9.75D x 6Dia in. (248 x 152 mm)
Weight: 12.5 lb. (5.6 kg)
Cord length: 20 ft. primary and secondary

B-100SP Dimensions

Lamp Head 9.75D x 6Dia. in. (248 x 152 mm)
Weight: 3.14 lb. (1.43 kg)
Cord length: 8 ft. (2.44 m)

B-100Y Dimensions

Lamp Head 8.5D x 5.5Dia. in. (216 x 140 mm)
Weight: 11.72 lb (5.33 kg)
Cord length: 8 ft. (2.44 m)

B-100YP Dimensions

Lamp Head 9.75D x 6Dia in. (248 x 152 mm)
Weight: 12.5 lb. (5.67 kg)
Cord length: 8 ft. (2.44 m)

Order Information

Part Numbers
115 V230 VModelDescriptionIntensity
2"/10" (uW/cm2)
95-0044-2295-0044-02B-100ALongwave UV Lamp20,000/5,000

95-0044-03

95-0044-04B-100A/RLongwave UV Lamp 20 ft. cords20,000/5,000
95-0127-0195-0127-02B-100APHigh Intensity 100 Watt Longwave UV Lamp, Cool-Touch Housing20,000/5,000
95-0127-0695-0127-07B-100AP/RHigh Intensity 100 Watt Longwave UV Lamp, 20 ft cords, Cool-Touch Housing20,000/5,000
95-0044-2495-0044-18B-100YHigh Intensity Wafer Inspection Lamp, Yellow Filter
95-0127-0395-0127-04B-100YPHigh Intensity Wafer Inspection Lamp, Yellow Filter, 100 Watt, Cool-Touch Housing
Replacement Parts / Accessories
89-0068-01Finger Guard for B-100AP, B-100AP/RFinger guard prevents fingers from touching the bulb
19-0126-01Lamp Funnel for B-100AP, B-100AP/R, B-100SPLamp Funnel directs the UV source to a specific location
19-0125-01Lamp Visor B-100AP, B-100AP/R, B-100SPLamp visor shields the user from the blue haze emtted form the lamp
19-0124-01Lamp Visor for B-100A, B-100ARLamp visor shields the user from the blue haze emitted from the lamp

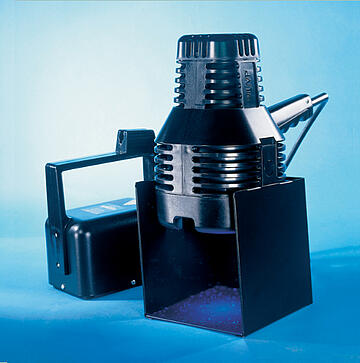

76-0055-01Exposure Box for B-100AP, B-100AP/R, B-100YP, B-100SPExposure Box

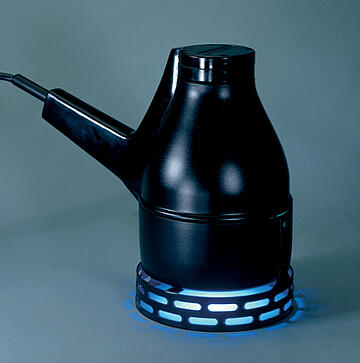

19-0158-01Lamp Guard B-100A, B-100AR

34-0054-01

Bulb, Spot

34-0049-01

Bulb, Self Ballasted B-100SP

38-0009-02

Filter for B-100Y and B-100YP
